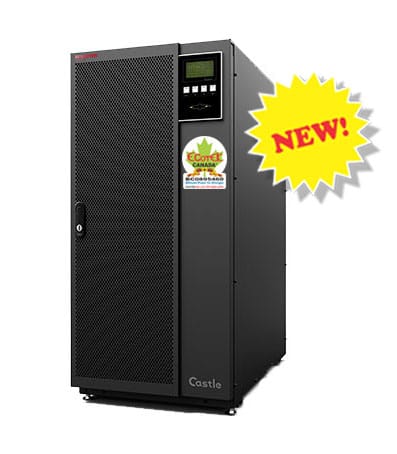

SANTAK 3C3PRO 120KS UPS

Name: SANTAK 3C3PRO 120KS UPS - Santak - UPS
Price: 569160000 VND
Availability: InStock

Original price was: 577,800,000₫.Current price is: 569,160,000₫.

Warranty: 36 months

Technical Specifications

INPUT

OUTPUT

Power	120 KVA / 108 KW
Voltage	380VAC (L-L) / 220 (L-N) ±1%
Phases	3-phase (Star type – 4 wires + ground)
Waveform	Pure sine wave in all grid states and independent of the remaining capacity of the battery source.
Frequency	Synchronized with input 50/60Hz ±4Hz or 50/60Hz ±0.05Hz (battery mode)
Load Connection Type	3-phase (Star type – 4 wires + ground)
Efficiency	94% (AC and battery mode) >98% (ECO mode)
Overload Capacity	≥ 110% ~ 125% for 10 minutes, 125% ~ 150% for 1 minute
Output Connection	Terminal block

BYPASS MODE

Automatic Switch to Bypass

Overload, UPS fault

BATTERY

Battery Type	12 VDC, sealed, maintenance-free
Backup Time	Depends on the capacity of the external battery – Customer can choose according to needs and cost
Battery Recharge Time	Depends on the capacity of the external battery

INTERFACE

Control Panel	LCD screen and function keys
Status Indicator LEDs	AC mode, battery mode, bypass mode, warning
Communication Ports	RS232, AS400, EPO, smart slot
Management Software	Winpower energy management software with auto system shutdown; compatible with Windows, Linux, Unix, Sun
Switching Time	0 ms
Emergency Power Off Function (EPO)	Yes
Parallel Redundancy Function (N+X)	Allows up to 4 units in parallel operation for multi-layer redundancy (N+X), capacity expansion, and balanced load sharing.

OPERATING ENVIRONMENT

STANDARDS

Noise Level	62 dB (excluding alarm)
Electromagnetic Field (EMS)	IEC 61000-4-2 Level 3 (ESD) IEC 61000-4-3 Level 3 (RS) IEC 61000-4-4 Level 4 (EFT) IEC 61000-4-5 Level 4 (Surge)
Conducted and Radiated EMI	IEC62040-2:2005 / EN50091-2:1996, for input current ≥ 25A
