Warranty: 36 months
HIGHLIGHTS

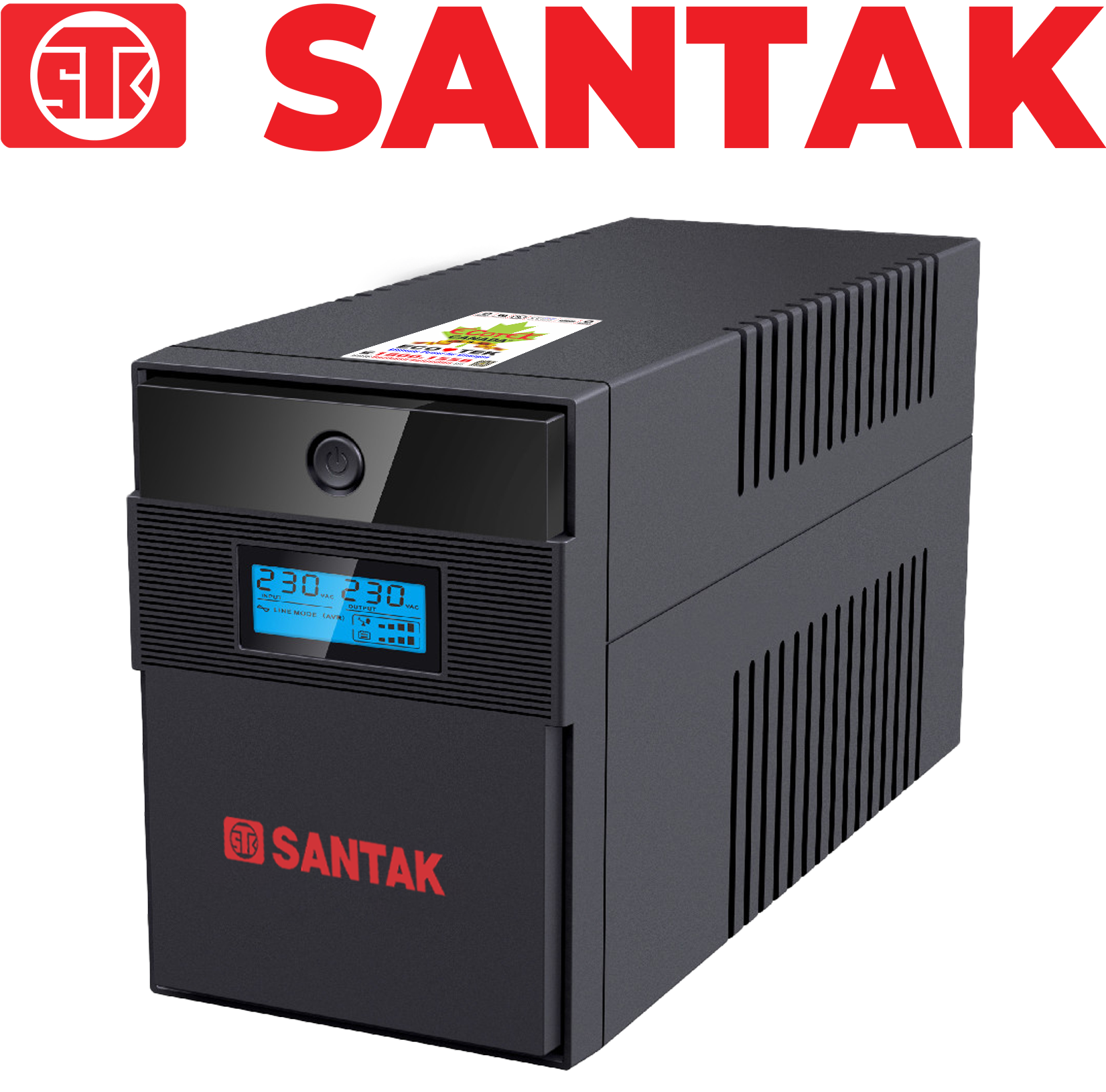

- UPS Santak Blazer 2200Pro is an upgraded version of the Blazer 2000Pro series, equipped with many advanced technologies from Santak. The Blazer 2200Pro improves a number of features, delivering an optimal power backup solution for small loads.
- Equipped with an LCD screen for monitoring UPS parameters during operation
TECHNICAL SPECIFICATIONS
| INPUT | |
|---|---|
| Nominal voltage | 220 VAC |
| Voltage range | 162 ~ 268 VAC |
| Phase | Single phase (2 wires + ground) |
| Nominal frequency | 50 Hz (46 ~ 54 Hz) |
| OUTPUT | |
| Capacity | 2200VA / 1200W |
| Voltage | 220 VAC ± 10% |
| Phase | Single phase (2 wires + ground) |
| Waveform (battery mode) | Simulated sine wave |
| Frequency | Same as input source |
| Efficiency | 95% in mains mode 85% in boost/buck mode |
| Overload capacity | 110% ± 10% for 5 minutes then switch to alarm |
| Output sockets | 6 sockets IEC320-10A |
| BATTERY | |
| Battery type | 12 VDC, sealed, maintenance-free, lifespan over 3 years. |
| Backup time | 50 minutes at 100W load |
| INTERFACE | |
| Control panel | Power button |
| LED | Mains mode, battery mode, load level, battery level |
| Communication port | USB port |
| Management software | Management via HID protocol through USB port |
| Transfer time | Maximum 10ms |
| OPERATING ENVIRONMENT | |
| Operating temperature | 0 ~ 40°C |
| Operating humidity | 20% ~ 90%, non-condensing |
| DIMENSIONS / WEIGHT | |
| Unit dimensions (W x D x H) (mm) | 139 x 364 x 195 |
| Net weight (kg) | 10.3 |
